Elevator steel wire rope 8x19S wear-resistant 6-22mm machine rope

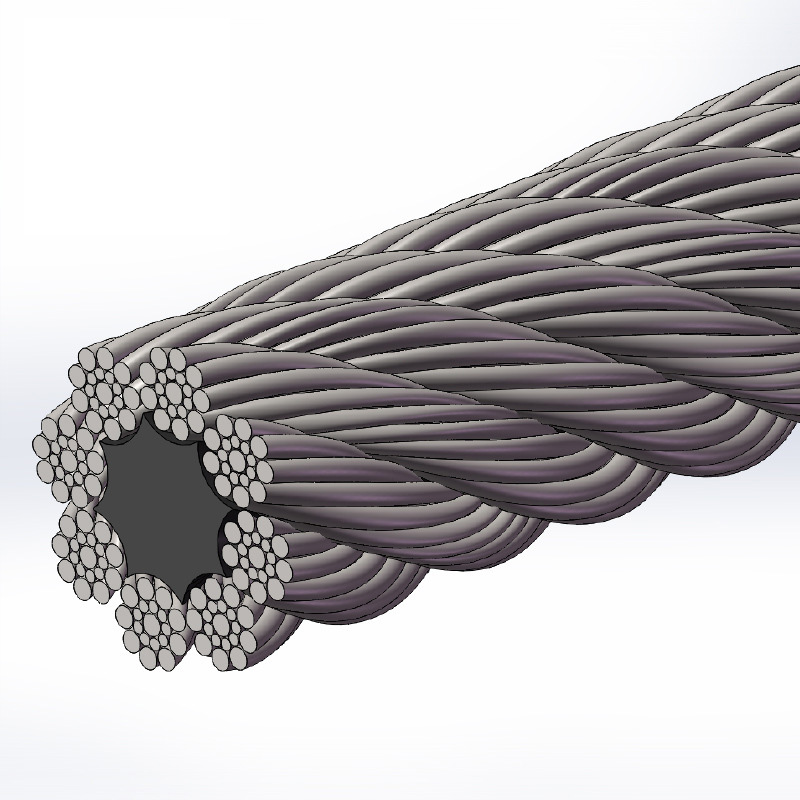

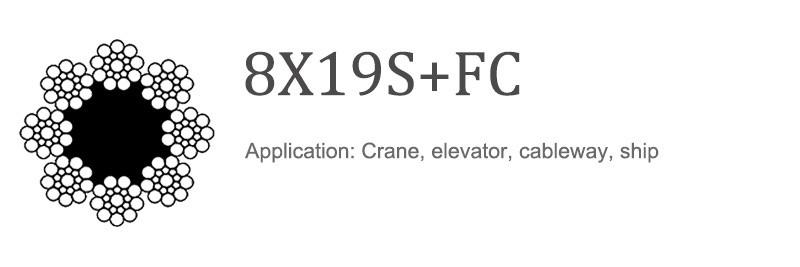

8X19S+FC is a highly flexible and wear-resistant multi strand steel wire rope composed of 8 seale style 19 strands and fiber cores, widely used in scenarios such as cranes, elevators, and cableways that require frequent bending.

WhatsApp: +86 18763056388

Email: bangyi@bzbangyi.com

Online Message

Related Products

Product Description

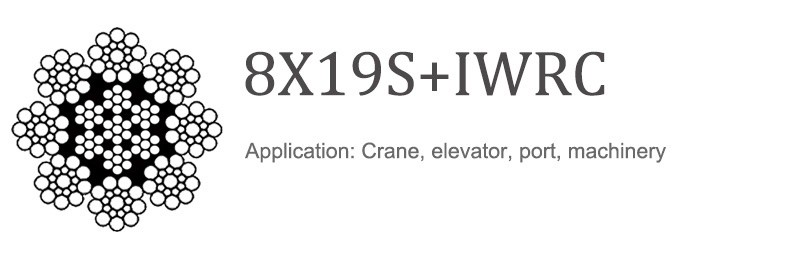

Product Name	8x19S+FC/IWRC Steel Wire Rope
Material	Bright/ Electric Galvanized/ Hot Dip Galvanized
Steel Grade	45#,60 #, 65 #, 70 # Carbon Steel
Diameter	6.0-22mm
Annual Production	70000 Tons
Delivery time	5-10 Days
Length	500-3000m/Reel

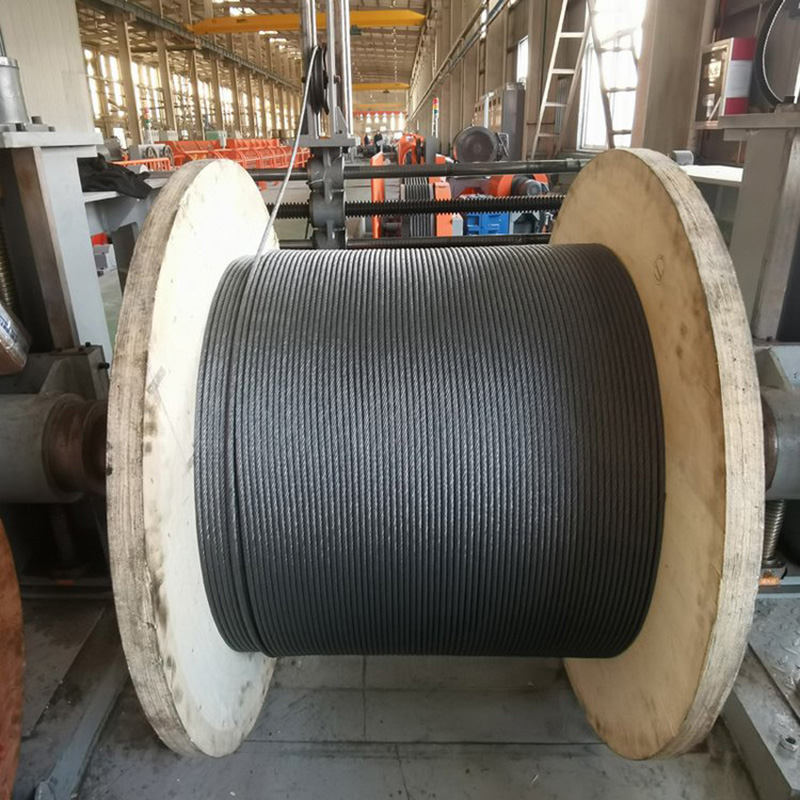

Packaging	Wooden Reel/ Iron Reel/ Plastic Reel/ Roll

Product Parameters:

Nominal ropediameter	Approx.weight	Minimum breaking load
		Dual tensile,MPa			Single tensile,MPa
		1320/17701320/1620	1370/1770	1570/17701620/1770	1570	1620	1770
mm	kg/100m	kN	kN	kN	kN	kN	kN
6.3	13.5	16.4	17.4	19.1	18.3	18.8	20.6
8	21.8	26.5	28.1	30.8	29.4	30.4	33.2
9	27.5	——	35.6	38.9	37.3	——	42.0
9.5	30.7	37.3	39.7	43.6	41.5	42.8	46.8
10	34.0	41.3	44.0	48.1	46.0	47.5	51.9
11	41.1	50.0	53.2	58.1	55.7	57.4	62.8
12	49.0	59.5	63.3	69.2	66.2	68.4	74.7
12.7	54.8	66.6	70.9	77.5	74.2	76.6	83.6
13	57.5	69.8	74.3	81.2	77.7	80.2	87.6
14	66.6	81.0	86.1	94.2	90.2	93.0	102
14.3	69.5	——	——	98.3	——	——	——
15	76.5	——	98.9	108	104	——	117
16	87.0	106	113	123	118	122	133
17.5	104	——	——	147	——	——	——
18	110	134	142	156	149	154	168
19	123	149	159	173	166	171	187
20	136	165	176	192	184	190	207
20.6	144	——	——	204	——	——	——
22	165	200	213	233	223	230	251

Nominal ropediameter	Approx.weight		Minimum breaking load
			Dual tensile,MPa				Single tensile,MPa
			1370/1770		1570/1770		1570		1770		1960
	IWRC	CSC	IWRC	CSC	IWRC	CSC	IWRC	CSC	IWRC	CSC	IWRC	CSC
mm	kg/100m		kN		kN		kN		kN		kN
6	14.7	——	——	——	21.4	——	20.1	——	22.7	——	25.1	——
8	26.0	24.6	35.8	34.7	38.0	36.9	35.8	34.7	40.3	39.1	44.7	43.3
9	33.0	31.2	45.3	43.9	48.2	46.7	45.3	43.9	51.0	49.5	56.5	54.8
9.5	36.7	34.7	50.4	48.9	53.7	52.0	50.4	48.9	56.9	55.1	63.0	61.0
10	40.7	38.5	55.9	54.2	59.5	57.6	55.9	54.2	63.0	61.1	69.8	67.6
11	49.2	46.6	67.6	65.5	71.9	69.7	67.6	65.5	76.2	73.9	84.4	81.8
12	58.6	55.4	80.5	78.0	85.6	83.0	80.5	78.0	90.7	87.9	100	97.4
12.7	65.6	62.1	90.1	87.4	95.9	92.9	90.1	87.4	102	98.5	113	109
13	68.8	65.1	94.5	91.5	100	97.4	94.5	91.5	106	103	118	114
14	79.8	75.5	110	106	117	113	110	106	124	120	137	133
15	91.6	86.6	126	122	134	130	126	122	142	137	157	152
16	104	98.6	143	139	152	147	143	139	161	156	179	173
18	132	124.7	181	175	193	187	181	175	204	198	226	219
19	147	139.0	202	196	215	208	202	196	227	220	252	244
20	163	154.0	224	217	238	230	224	217	252	244	279	270
22	197	186.3	271	262	288	279	271	262	305	296	338	327

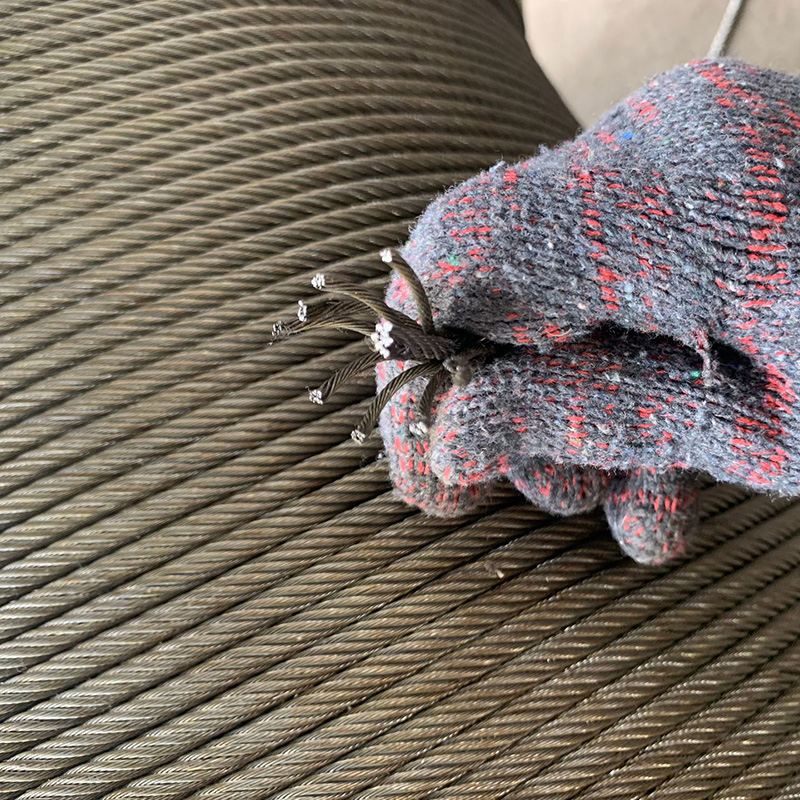

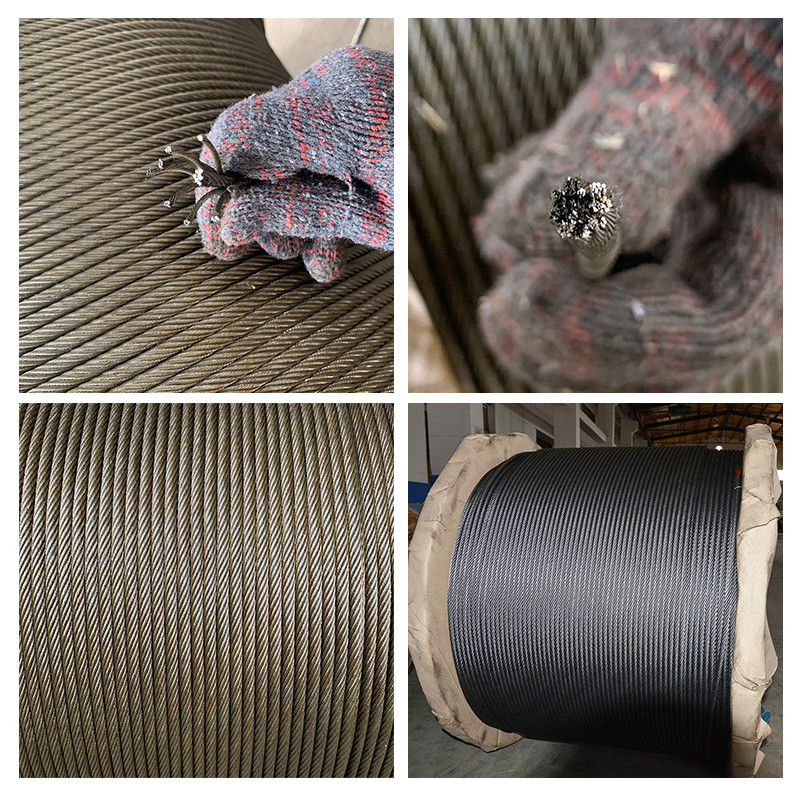

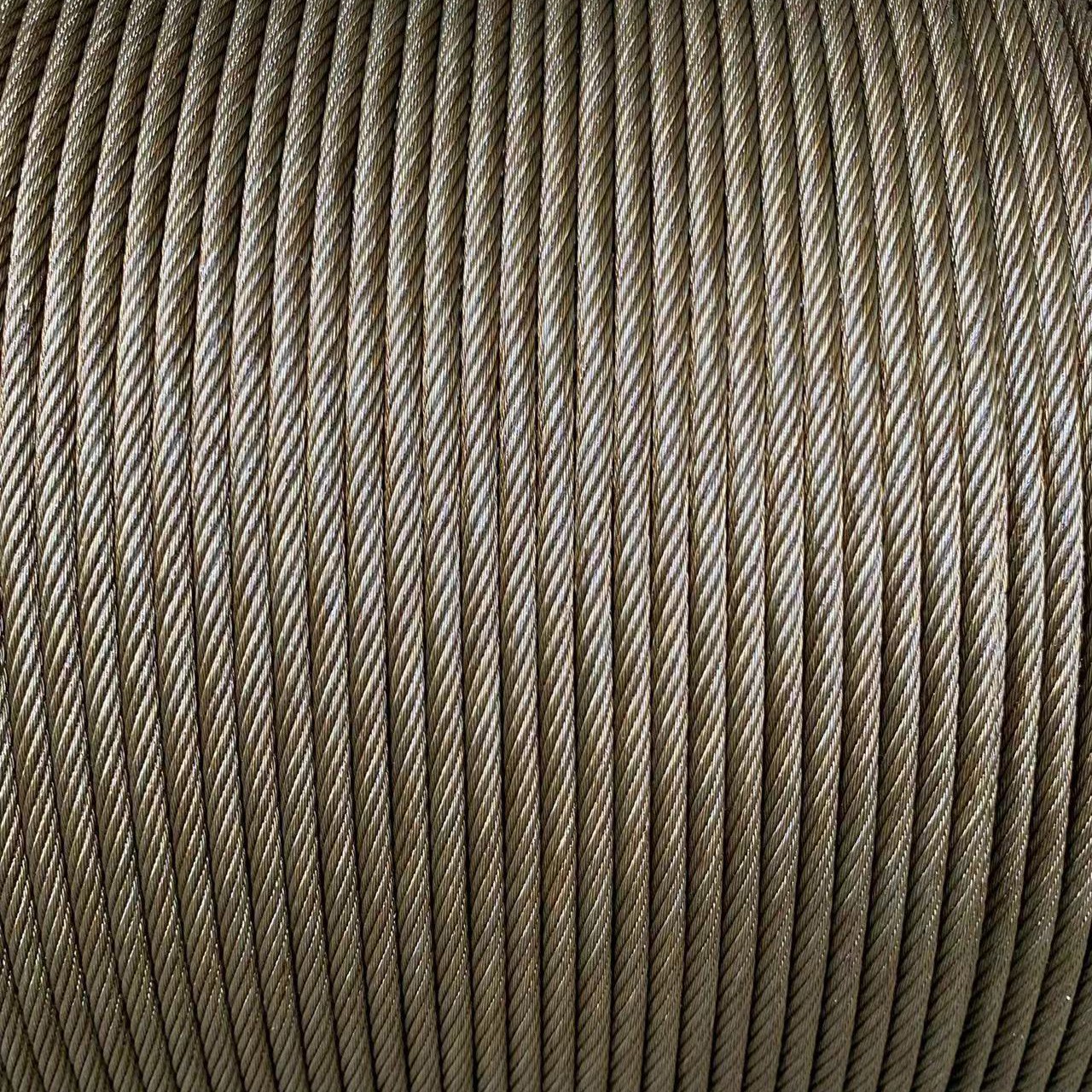

Product Detail:

Product Advantages

1. High flexibility: The 8-strand structure with fiber core has better bending performance than traditional 6-strand steel wire rope, which can adapt to smaller pulley diameters and reduce bending fatigue damage

2. Strong wear resistance: The Xilu style strand structure increases the contact area between the outer steel wire and the contact surface, reduces the unit pressure, reduces the wear rate, and extends the service life

3. Load balancing: The multi strand design evenly distributes the load on each steel wire strand, reducing the risk of single strand overload and improving overall stability

4. Lightweight: Fiber cores are lighter in weight compared to steel cores, making them easier to transport and install, while reducing additional loads during lifting operations

Product Application

Common uses of 8x19S+FC structure, 6.0-22mm diameter steel wire rope:

1. Lifting equipment: suitable for frequent bending lifting scenarios such as port cranes, construction tower cranes, etc

2. Elevator system: As an elevator traction rope, it meets the requirement of repeated bending during elevator operation

3. Cableway cable car: adapted to the small diameter bending of cableway pulleys, while ensuring long-term reliability of operation

4. Shipping: Used for loading equipment, mooring ropes, etc. on board ships, with good fatigue resistance

Company Certification:

Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, Rohs ISO, etc

Factory Showcase

Customer Visit

Shandong Faster Technology Co., Ltd. is a professional comprehensive manufacturer of steel wire rope, sling, and chains in China, focusing on providing high reliability industrial supporting products and customized solutions for multiple industries such as lifting, ships, ports, construction, mining, elevators, etc.

The company has advanced automated production lines for wire drawing, twisting and rope closing, and also equipped with quality inspection equipment, to achieve full process control ability from raw materials to finished products, ensuring stable and consistent product quality. At present, it has the production capacity of various types of steel wire ropes with an annual output of over 70000 tons, and can supply single/multi strand steel wire ropes with a diameter of 1-20mm, covering three material series: galvanized, stainless steel, and plastic coated , to meet the corrosion resistance and high-strength requirements of different scenarios.

In addition to standardized steel wire rope products, we can customize and process various types of pressed product slings according to customer needs, and provide full specification chain products such as G30, G43, G70, G80, G100, etc., forming an integrated supply capacity of "rope-sling-chain", providing one-stop solutions for industrial lifting, traction, fixation and other multi scenario needs.

With excellent product quality and flexible customized services, Shandong Faster has become a long-term partner for many industry customers.
