Product Parameter:

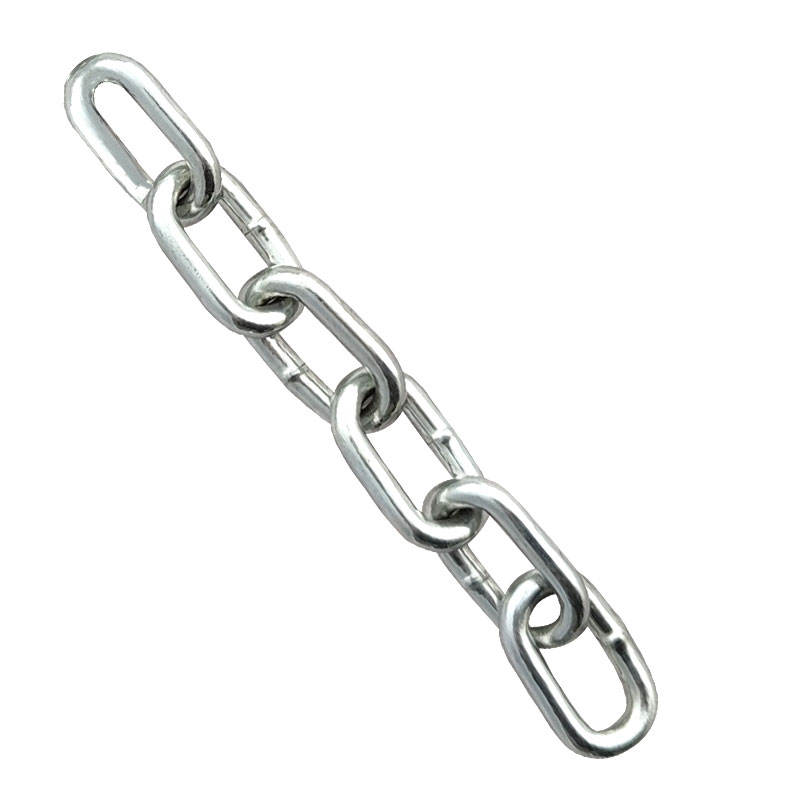

Din5685A short link chain：

Definition: The length to width ratio of a chain link is relatively small (usually length ≤ 3 times the chain diameter), making the chain more compact and less prone to deformation.

Features:

1. Stable structure, suitable for bearing static loads in the vertical direction

2. The friction between the chain links is smaller, making the operation smoother

3. Surface treatment is mostly hot-dip galvanizing or electroplating galvanizing, which has basic rust prevention ability

Common specifications: Chain diameter from 2mm to 22mm, common models such as DIN 5685A-6 (chain diameter 6mm)

Applications:

1. Protective chains and fence chains for industrial equipment

2. Fixed chains for items in warehouses and shelves

3. Traction chain of light trailer

I.L:INSIDE LENGTH
O.W:OUTSIDE WIDTH

Din5685C long link chain：

Definition: The length to width ratio of a chain link is relatively large (usually length ≥ 4 times chain diameter), making the chain overall softer and more flexible.

Features:

1. Good bending performance, suitable for bundling and traction in complex environments

2. Under the same chain diameter, the coverage range is wider

3. Stainless steel material can be used, which has excellent corrosion resistance

Common specifications: Chain diameter from 4mm to 23mm, common models such as DIN 5685C-10 (chain diameter 10mm)

Applications:

1. Chains for agricultural machinery and livestock breeding

2. Mooring chains for ships and docks

3. Guardrail chains and decorative chains for outdoor environments

I.L:INSIDE LENGTH
O.W:OUTSIDE WIDTH

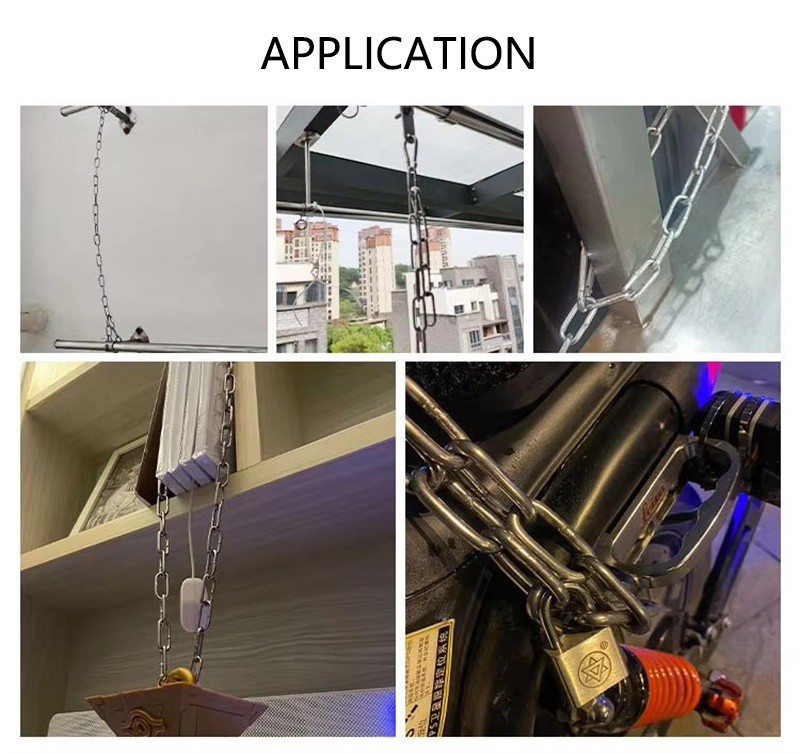

Product Application：
