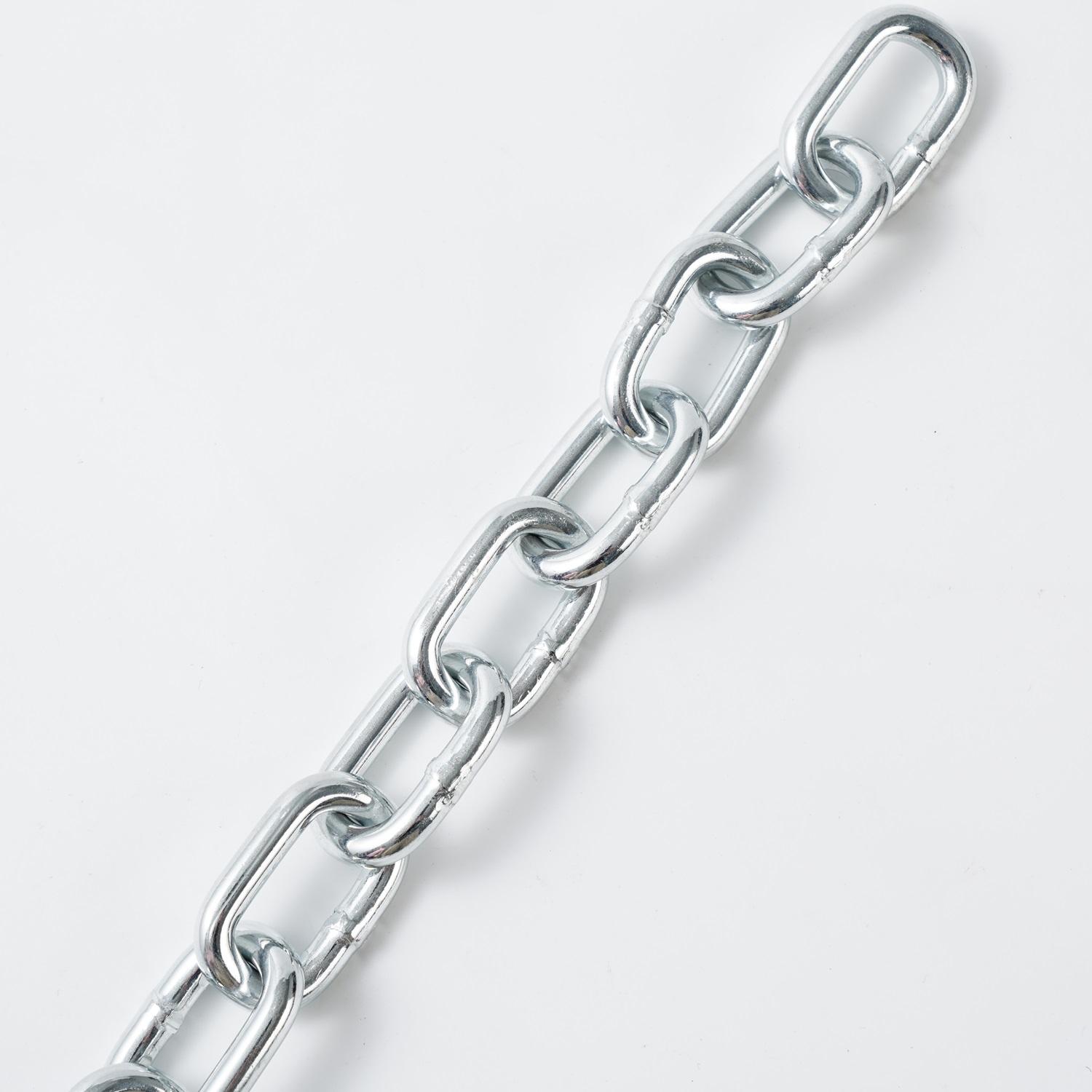

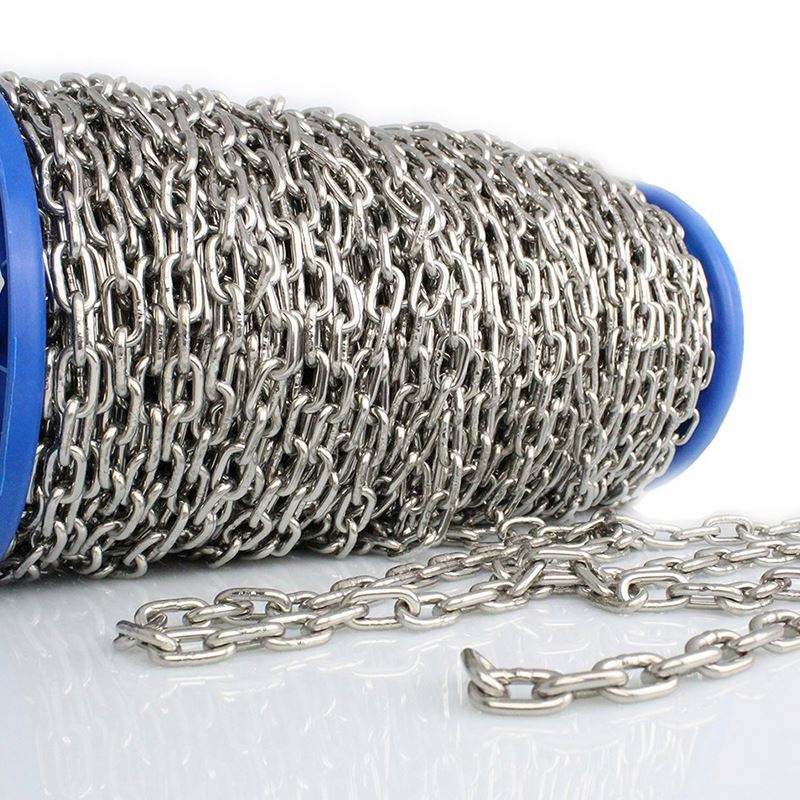

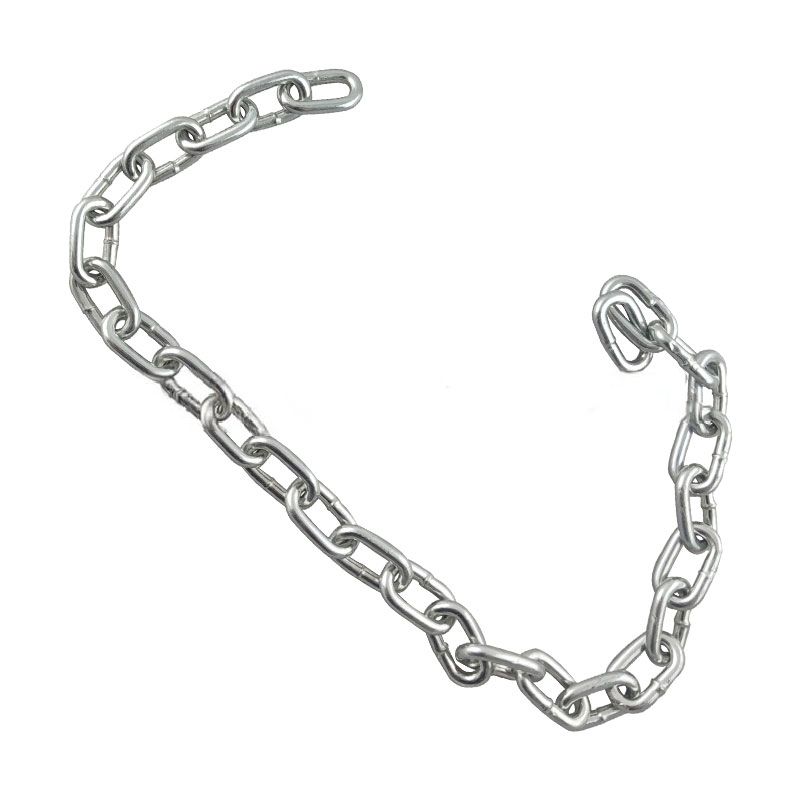

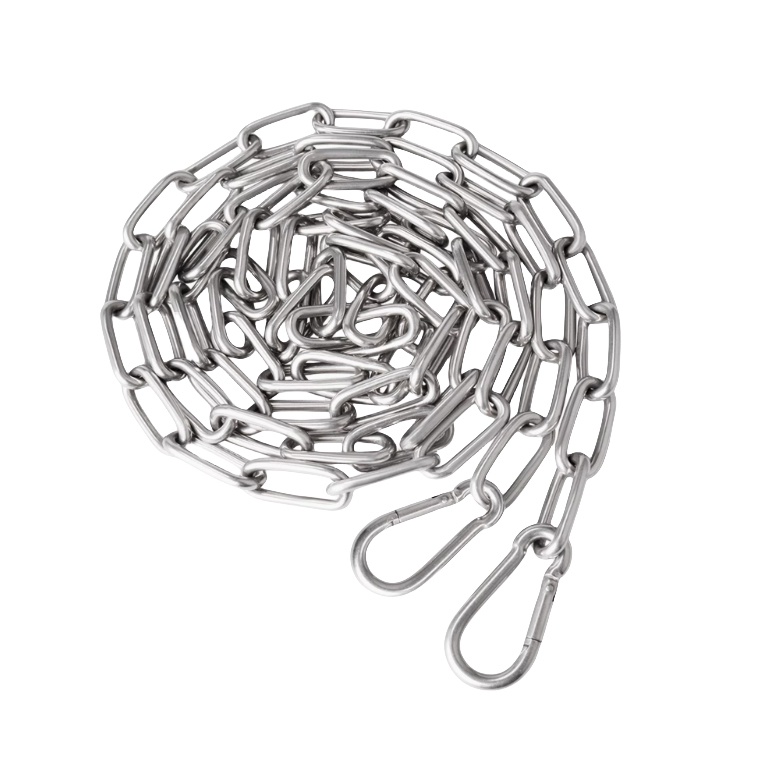

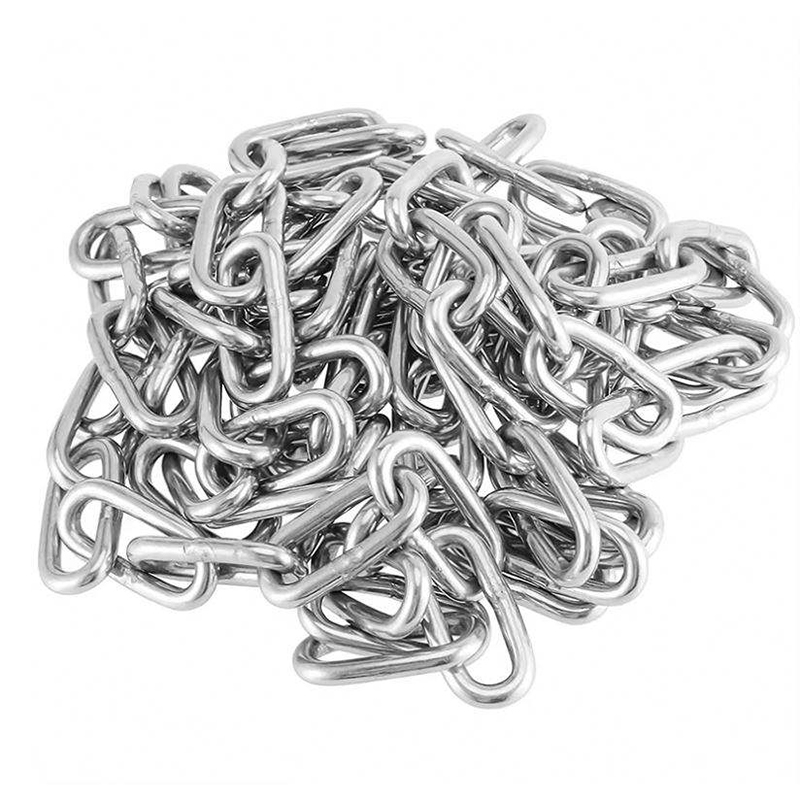

DIN763 DIN764 DIN766 Standard Carbon Steel Electric Galvanized Welded Link Chain

DIN763, DIN764, and DIN766 are all circular chains under the DIN system, made of carbon steel or stainless steel. DIN763 is a Long Link Chain, with a 2-32mm specification suitable for use in lifting and offshore engineering; DIN764 is a Medium Link Chain, with a specification of 4-33mm, suitable for general heavy-duty scenarios such as bundling, towing, and guardrail construction; DIN766 is a Short Link Chain with a specification of 2-32mm, suitable for ship anchoring and mining traction

WhatsApp: +86 18763056388

Email: bangyi@bzbangyi.com

Online Message

Related Products

Product Description

Product Name	DIN763 764 766 galvanized Long/Medium/Short Link Chains
Material	Carbon steel Q235&Q195/Stainless Steel
Tensile Strength	400-650N/mm²
Breaking Strength	4 Times
Size	2-32mm
Standard	DIN763 DIN764 DIN766
Surface Treatment	Electric Galvanized
Application	Binding, fixing, towing, guardrail

Product Parameter:

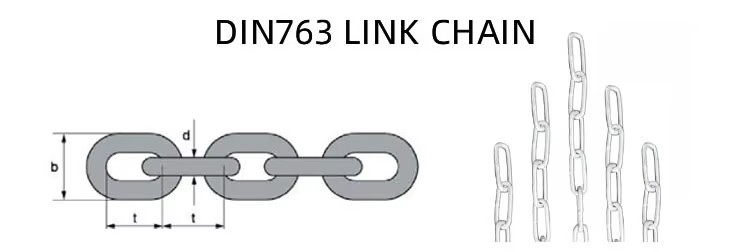

DIN763 Long Link Chain

DIAMETER		INSIDELENGTH		OUTSIDEWIDTH		WORKINGLOAD	PROOFLOAD	BREAKINGLOAD	UNITWEIGHT
MM	TOLERANCE	MM	±MM	MM	±MM	KG	N	N	KG/100M
2	±0.5	22	1	8	0.4	25	800	1250	6
2.5	±0.5	24	1.1	10	0.5	40	800	2000	10
3	±0.5	26	1.2	12	0.6	55	1050	3200	15
3.5	±0.5	28	1.3	14	0.7	80	1540	3850	20
4	±0.5	32	1.5	16	0.8	100	2500	6500	27
4.5	±0.5	34	1.7	18	0.9	128	3000	8000	35
5	±0.5	35	1.8	20	1	160	4000	10000	43
5.5	±0.5	38.5	1.8	22	1.1	195	4200	10500	52
6	±0.5	42	2	24	1.2	200	5000	12000	63
7	±0.5	49	2.5	28	1.4	300	7500	19000	86
8	±0.5	52	2.5	32	1.6	400	10000	25000	110
8.5	±0.5	56	2.8	34	1.7	460	10200	25500	125
9	±1.0	59	3	36	1.8	530	10500	32000	141
10	±1.0	65	3.2	40	2	630	16000	40000	175
11	±1.0	72	3.4	44	2	790	15800	47500	211
12	±1.0	78	3.6	48	2.3	940	18800	56500	255
13	±1.0	82	4	52	2.5	1000	25000	63000	295
16	±1.0	100	5	64	3.2	1600	40000	100000	445
18	±1.0	113	5.2	70	3.2	2120	42300	127000	565
19	±1.0	119	5.6	72	3.4	2370	47300	142000	625
20	±1.0	120	6	75	3.8	2500	50000	160000	700
22	±1.0	127	6	82	4	3170	63300	190000	855
25	±1.0	140	6.6	85	4.2	4090	81700	245000	1090
28	±1.0	152	7	96	4.7	6000	120000	300000	1390
30	±1.0	162	7.4	102	4.9	7000	140000	350000	1597
32	±1.0	171	7.8	108	5.2	8000	160000	400000	1820

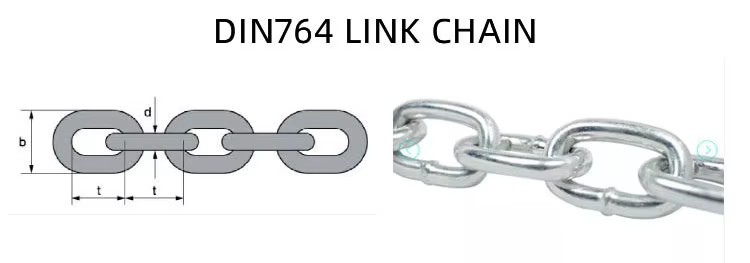

DIN764 Medium Link Chain

DIAMETER		INSIDELENGTH		INSIDEWIDTH	OUTSIDEWIDTH	LENGTHPER11 LINKS		PROOFLOAD	BREAKINGLOAD	UNITWEIGHT
MM	TOLERANCE	MM	+/-MM	MM	MM	MM	+/-MM	KG	N	KG/100M
4	±0.2	16	0.30 0.20	5	14	176	1.60/0.90	400	7000	31.3
5	±0.2	18	0.40 0.20	7	18.2	198	1.80/1.00	680	11800	51.4
6	±0.2	21	0.50 0.20	8	21.5	231	2.00/1.10	850	16500	74
8	±0.2	28	0.50 0.30	11	29	308	2.20/1.20	1680	32000	131.5
10	±0.3	35	0.60 0.30	14	36	385	2.70/1.50	2630	50000	200
12	±0.3	42	0.60 0.30	16	41	462	3.20/1.80	3680	70000	298
13	±0.4	45	0.70 0.40	18	47	495	3.50/2.00	4200	80000	350
14	±0.45	49	0.75 0.45	20	48	539	3.80/2.00	4830	92000	406
16	±0.5	56	0.90 0.50	22	58	616	4.30/2.50	6700	125000	520
18	±0.8	63	1.00 0.50	24	65	693	4.70/2.80	8400	160000	650
20	±1.0	70	1.10 0.60	27	72	770	5.40/3.20	10000	200000	820
23	±1.2	80	1.30 0.70	31	83	880	6.20/3.50	13000	250000	1100
26	±1.3	91	1.50 0.80	35	94	1001	7.00/4.00	16000	320000	1400
28	±1.4	98	1.60 0.90	36	101	1078	8.00/4.50	18000	360000	1650
30	±1.5	105	1.70 0.90	39	108	1155	8.50/4.70	20250	390000	1900
33	±1.7	115	1.90 1.00	43	119	1265	9.50/5.00	25000	425000	2250

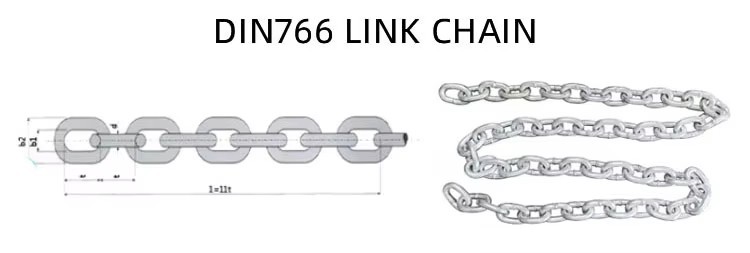

DIN766 Short Link Chain

DIAMETER		INSIDELENGTH		INSIDEWIDTH	OUTSIDEWIDTH	LENGTH OF11LINKS		BREAKLOAD	UNITWEIGHT
MM	TOLERANCE	MM	+/-MM	MM	MM	MM	+/-MM	N	KG/100M
2	±0.2	12	±0.2	3.5	7.5	132	+1/-0.5	1.25	0.07
3	±0.2	16	±0.2	4.2	11.0	176	+1.4/-0.7	4.00	0.16
4	±0.2	16	+0.3/-0.2	5.0	13.7	176	+2.1/-1.1	8.00	0.32
5	±0.2	18.5	+0.4/-0.2	6.0	17	203.5	+2.4/-1.2	12.50	0.50
6	±0.2	18.5	+0.4/-0.2	7.2	20.2	203.5	+2.4/-1.2	16.00	0.80
7	±0.3	22	+0.4/-0.2	8.4	23.8	242	+3/-1.4	25.00	1.10
8	±0.3	24	+0.4/-0.2	9.6	27.2	264	+3.0/-1.5	32.00	1.40
9	±0.4	27	+0.5/-0.3	10.8	30.6	297	+3.6/-1.8	40.00	1.80
10	±0.4	28	+0.5/-0.3	12.0	34	308	+3.7/-1.9	50.00	2.20
11	±0.4	31	+0.5/-0.3	13.2	37.4	341	+4.0/-2.0	63.00	2.70
12	±0.5	36	+0.6/-0.3	14.4	40.8	396	+4.4/-2.2	72.40	3.10
13	±0.5	36	+0.6/-0.3	15.6	44.2	396	+4.6/-2.4	80.00	3.80
14	±0.6	41	+0.7/-0.4	16.8	47.6	451	+5.4/-2.7	100.00	4.40
16	±0.6	45	+0.8/-0.4	19.2	54.4	495	+6.0/-3.0	125.00	5.70
18	±0.9	50	+0.8/-0.4	21.6	61.2	550	+6.6/-3.3	160.00	7.30
19	±0.9	53	+0.9/-0.4	22.8	64.6	583	+7.0/-3.7	180.00	7.97
20	±1.0	56	+1.0/-0.5	24.0	68.0	616	+7.4/-3.7	200.00	9.00
22	±1.2	62	+1.1/-0.5	26.4	75.0	682	+8.0/-4.0	243.20	11.00
23	±1.2	64	+1.1/-0.5	27.6	78.2	704	+8.4/-4.2	250.00	12.00
26	±1.3	73	+1.2/-0.6	31.2	88.4	803	+9.6/-4.8	320.00	15.00
28	±1.4	78	+1.3/-0.65	33.8	95.2	858	+10.2/-5.1	400.00	18.00
30	±1.5	84	+1.4/-0.7	41.0	102.0	924	+11.0/-5.5	450.00	19.50
32	±1.6	90	+1.5/-0.75	43.0	108.8	990	+11.8/-5.9	500.00	23.00

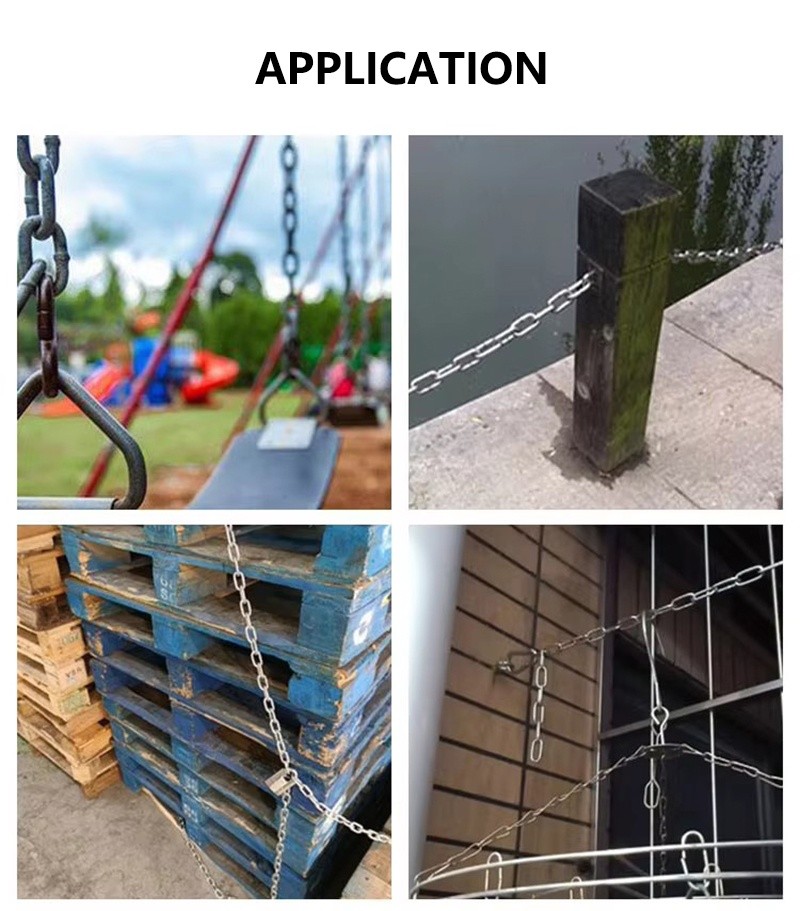

Product Application：

Company Certification:

Our product meets international production standards and has obtained multiple certifications such as SGS, CE, Rohs ISO, etc

Factory Showcase

Customer Visit

Shandong Faster Technology Co., Ltd. is a professional comprehensive manufacturer of steel wire rope, sling, and chains in China, focusing on providing high reliability industrial supporting products and customized solutions for multiple industries such as lifting, ships, ports, construction, mining, elevators, etc.

The company has advanced automated production lines for wire drawing, twisting and rope closing, and also equipped with quality inspection equipment, to achieve full process control ability from raw materials to finished products, ensuring stable and consistent product quality. At present, it has the production capacity of various types of steel wire ropes with an annual output of over 70000 tons, and can supply single/multi strand steel wire ropes with a diameter of 1-20mm, covering three material series: galvanized, stainless steel, and plastic coated , to meet the corrosion resistance and high-strength requirements of different scenarios.

In addition to standardized steel wire rope products, we can customize and process various types of pressed product slings according to customer needs, and provide full specification chain products such as G30, G43, G70, G80, G100, etc., forming an integrated supply capacity of "rope-sling-chain", providing one-stop solutions for industrial lifting, traction, fixation and other multi scenario needs.

With excellent product quality and flexible customized services, Shandong Faster has become a long-term partner for many industry customers.
