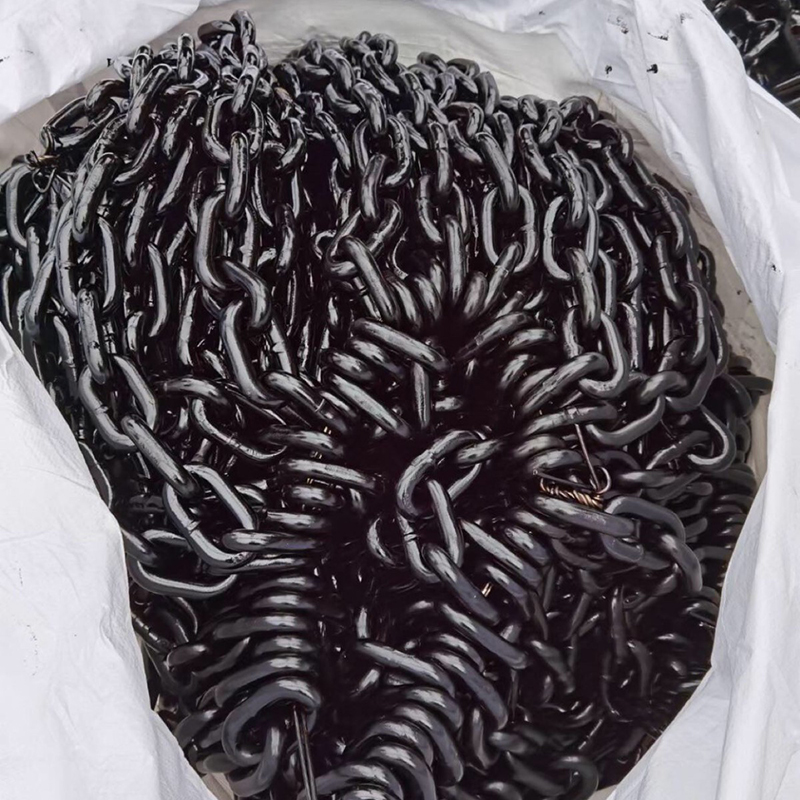

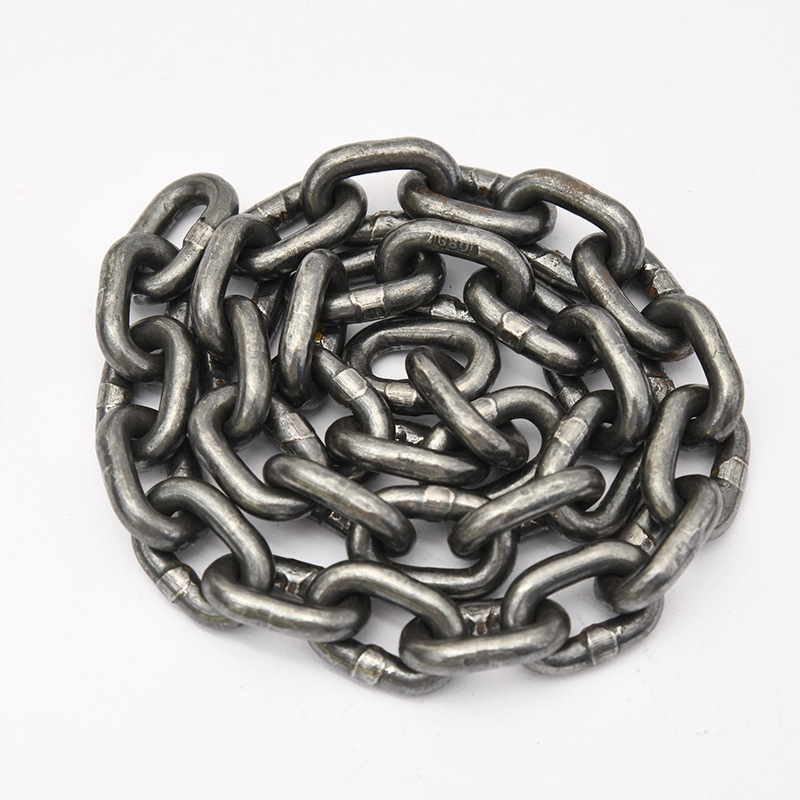

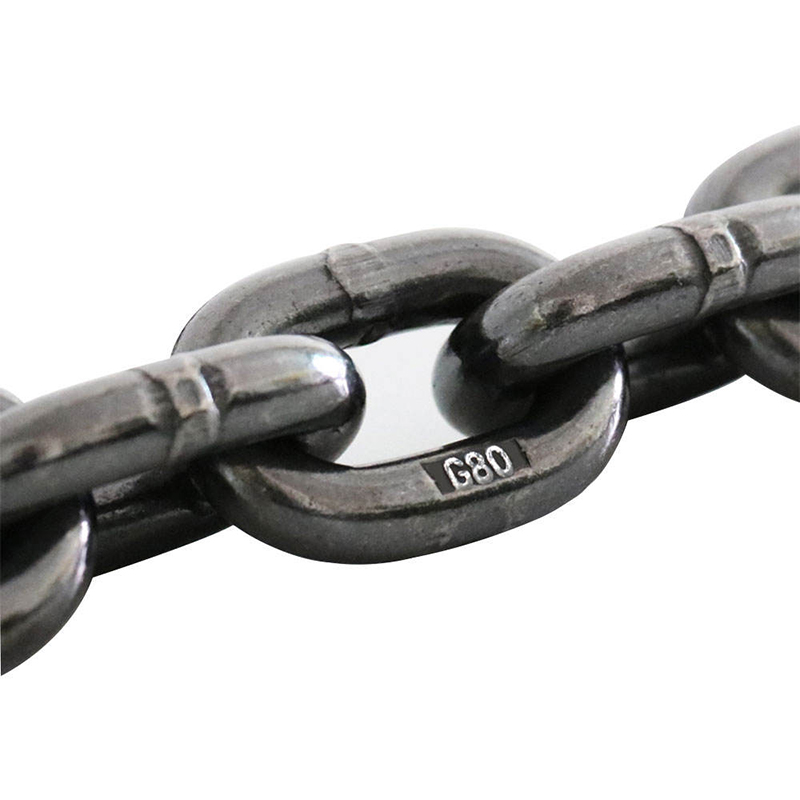

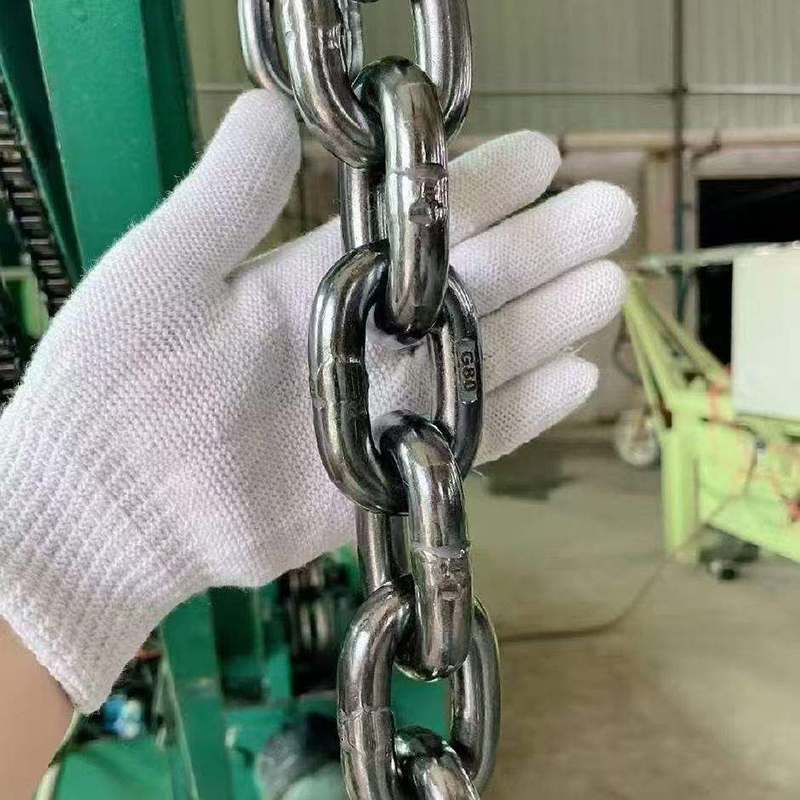

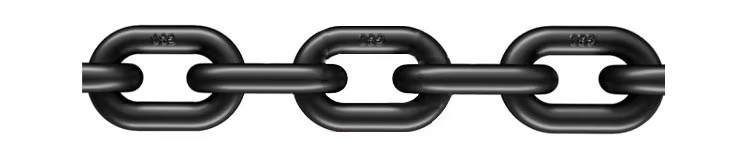

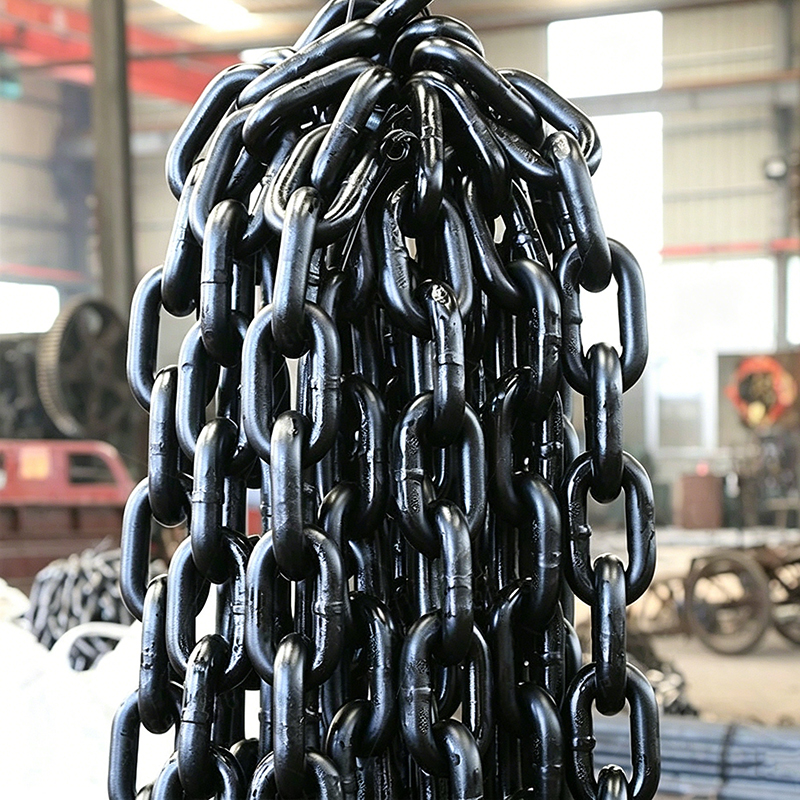

NACM90 EN818-2 G80 Black Heavy Duty 6mm 8mm 10mm Alloy Steel Lifting Chain

Grade G80 lifting chain is an indispensable lifting device when lifting heavy objects. It is made of high-quality alloy steel(manganese steel,etc.),and the quality is strictly controlled throughout the whole process. Only in this way can the lifting chain reach Grade 80 international standard.

WhatsApp: +86 18763056388

Email: bangyi@bzbangyi.com

Online Message

Related Products

Product Description

Product Name	G80 Alloy Lifting Chain
Material	Alloy steel 20Mn2
Tensile Strength	800N/mm²
Breaking Strength	Quadruple
Size	6mm-45mm
Standard	NACM90,NACM96, ASTM80; EN 818-2
Surface Treatment	Yellow zinc/color zinc galvanizing, primary color blackening, hot-dip galvanizing, etc
Application	Decoration;Protection;Lifting;Traction; Fishing&boat chain;Mine chain; Cement lifting round chain

Product Features

1. High strength performance: The minimum breaking force of the G80 chain is 4 times its rated working load, and the test load is 2 times the rated load, which can effectively ensure the safety of lifting operations. For example, a G80 chain with a rated load of 5 tons can have a minimum breaking force of 20 tons.

2. High quality materials and processes: Usually made of high-quality alloy steel materials such as manganese steel, and subjected to strict heat treatment processes such as quenching and tempering to improve the strength, toughness, and wear resistance of the chain.

3. Strict quality control: During the production process, it is necessary to strictly follow the requirements of NACM standards and test the dimensional tolerances, breaking force, hardness and other indicators of the chain to ensure stable and reliable product quality.

4. Diversified surface treatment: Polishing, blackening, galvanizing, spraying and other surface treatment methods can be selected according to different usage environments and needs to improve the corrosion resistance and appearance quality of the chain.

Product Parameter:

NACM90 Standard G80 Alloy Lifting Chain

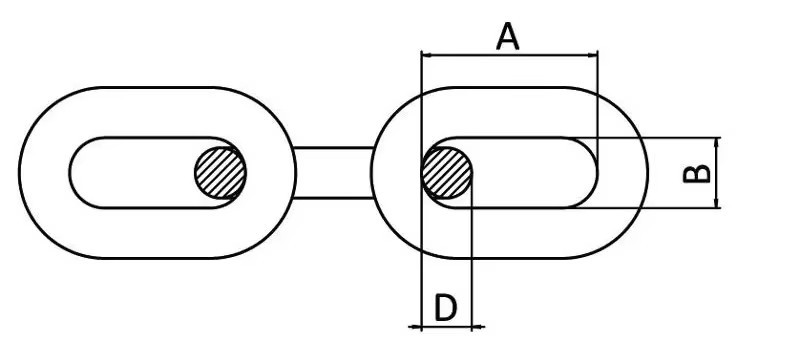

SIZE	DIA	Inside Length	Inside Width	Outside Width	Working Load Max	Proof Test Max	Breaking Load	WEIGHT PER 100FT	WEIGHT PER METER
	DIA	Inside Length	Inside Width	Outside Width	Working Load Max	Proof Test Max	(MIN)	WEIGHT PER 100FT	WEIGHT PER METER
	MM	MM	MM	MM	KG	KN	KN	KG	KG
1/4	6	18	7.8	22.2	1150	22.5	45	24.3	0.8
1/4	7	21	9.1	25.9	1570	30.8	61.6	33	1.08
5/16	8	24	10.4	29.6	2050	40.3	80.4	43.5	1.43
5/16	9	27	11.7	33.3	2500	50.8	102	54.8	1.8
3/8	10	30	13	37	3200	63	126	67.6	2.22
1/2	13	39	16.9	56	5400	107	214	113.6	3.73
5/8	16	48	20.8	59.2	8200	161	322	170.3	5.58
5/8	18	54	23.4	66.6	10000	203.5	407	222.5	7.1
3/4	19	57	24.7	70.3	11200	227	454	243.8	8
3/4	20	60	26	74	12500	250	500	274.3	9
7/8	22	66	28.6	81.4	15000	300	600	332	10.9
1	26	78	33.8	96.2	2000	400	800	463	15.2

En818-2 Standard G80 short link lifting chain

SIZE	INSIDE LENGTH	INSIDE WIDTH	WLL	BREAKING PROOF FORCE		WEIGHT
MM	MM	MM	TON	MPF(KN)	BF(KN)	KG/M
6	18	7.8	1.12	28.3	45.2	0.8
7	21	9.1	1.5	38.5	61.6	1.1
8	24	10.4	2	50.3	80.4	1.4
10	30	13	3.15	78.5	126	2.2
13	39	16.9	5.3	133	212	3.8
16	48	20.8	8	201	322	5.7
18	54	23.4	10	254	407	7.3
20	60	26	12.5	314	503	9
22	66	28.6	15	380	608	10.9
26	78	33.8	21.2	531	849	15.2
28	84	36.4	25	616	985	17.6
32	96	41.6	31.5	804	1290	23
36	108	46.8	40	1020	1630	29
40	120	52	50	1260	2010	36
45	135	58.5	63	1590	2540	45.5

Product Application：

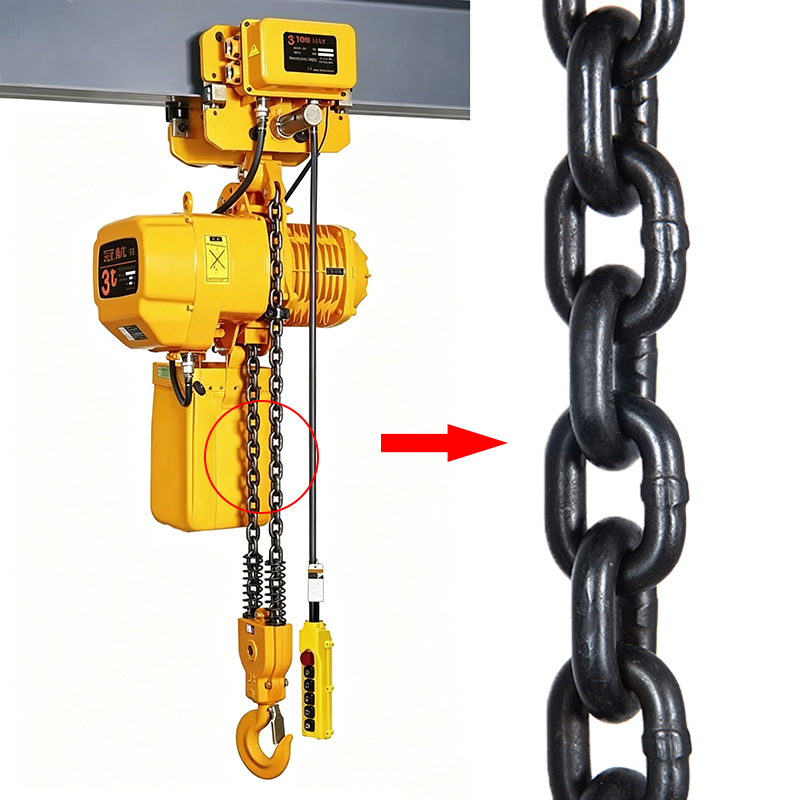

Widely used in lifting machinery, port loading and unloading, mining, construction and other fields, for lifting, towing, bundling heavy objects and other operations

Company Certification:

Our product meets international production standards and has obtained multiple certifications such as SGS, CE, Rohs ISO, etc

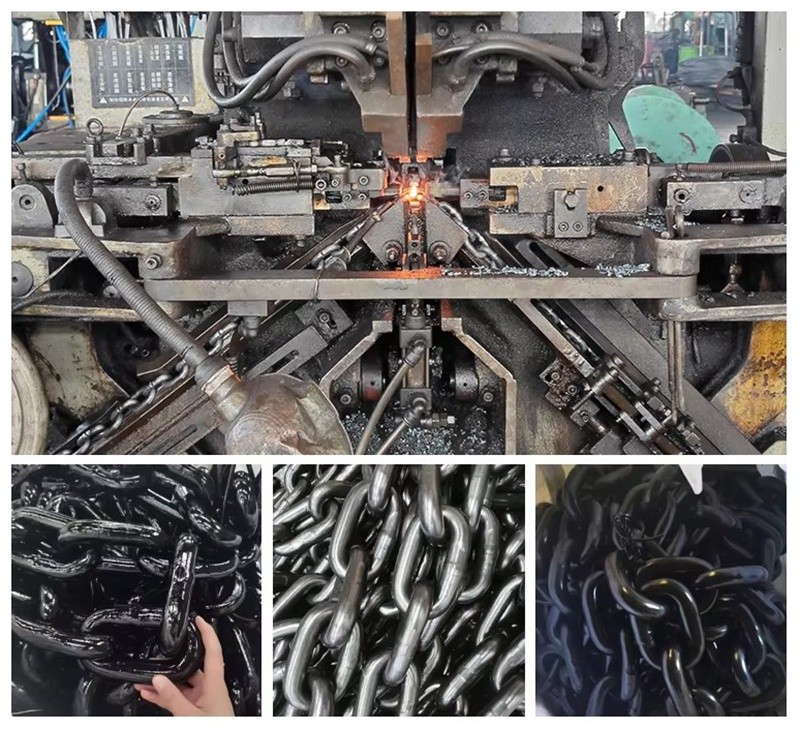

Factory Showcase

Customer Visit

Shandong Faster Technology Co., Ltd. is a professional comprehensive manufacturer of steel wire rope, sling, and chains in China, focusing on providing high reliability industrial supporting products and customized solutions for multiple industries such as lifting, ships, ports, construction, mining, elevators, etc.

The company has advanced automated production lines for wire drawing, twisting and rope closing, and also equipped with quality inspection equipment, to achieve full process control ability from raw materials to finished products, ensuring stable and consistent product quality. At present, it has the production capacity of various types of steel wire ropes with an annual output of over 70000 tons, and can supply single/multi strand steel wire ropes with a diameter of 1-20mm, covering three material series: galvanized, stainless steel, and plastic coated , to meet the corrosion resistance and high-strength requirements of different scenarios.

In addition to standardized steel wire rope products, we can customize and process various types of pressed product slings according to customer needs, and provide full specification chain products such as G30, G43, G70, G80, G100, etc., forming an integrated supply capacity of "rope-sling-chain", providing one-stop solutions for industrial lifting, traction, fixation and other multi scenario needs.

With excellent product quality and flexible customized services, Shandong Faster has become a long-term partner for many industry customers.
