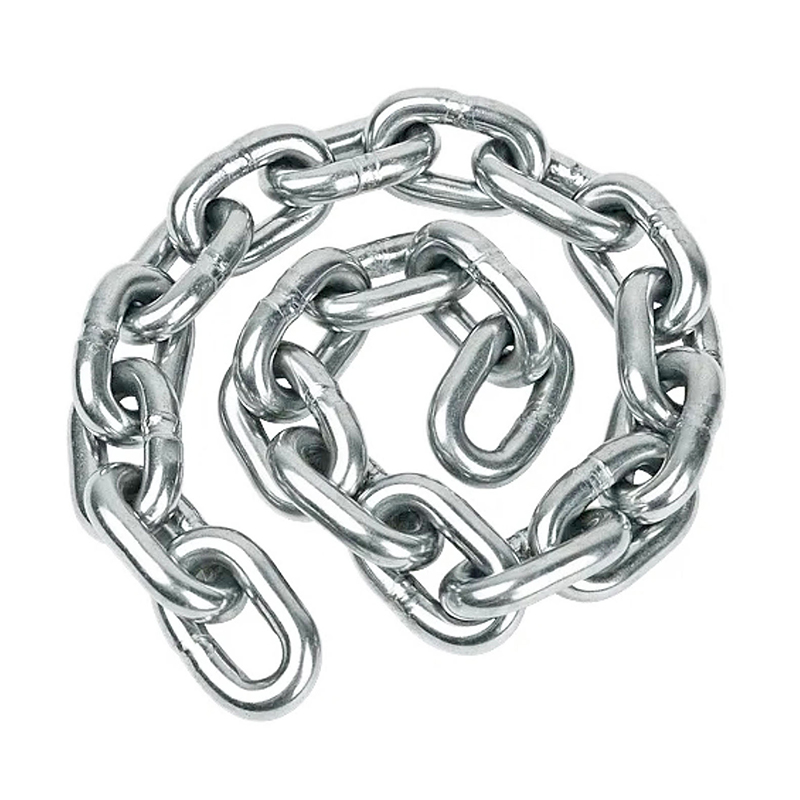

Welded Steel Electric Galvanized Ordinary Short Medium Long Link Chain

Welded Steel Electric Galvanized Ordinary Short Medium Long Link Chain
The ordinary industrial link chain is made by sequentially interlocking and splicing high-strength metal buckles, while the long chain is commonly used for connecting components of small equipment, bundling light goods, or fixing workstation equipment; The mid-range chain is a universal product for industrial scenarios, widely used in medium-sized lifting operations, material conveying equipment transmission, and cargo binding for storage shelves. It combines flexibility and load-bearing capacity; Short chains are designed for scenarios such as large-scale mechanical lifting, long-distance transportation of heavy goods, and heavy dragging in mines and ports, with sufficient length to meet the needs of large-span operations.
WhatsApp: +86 18763056388
Email: bangyi@bzbangyi.com

Product Description


Product Name

Ordinary Short Medium Long Link Chain

Material

Carbon steel Q235&Q195

Tensile Strength

300-700N/mm²

Breaking Strength

2-4 Times

Size

2-32mm

Surface Treatment

Electric Galvanized

Application

Binding, lifting, hoisting, transportation, dragging


Product Paramenters

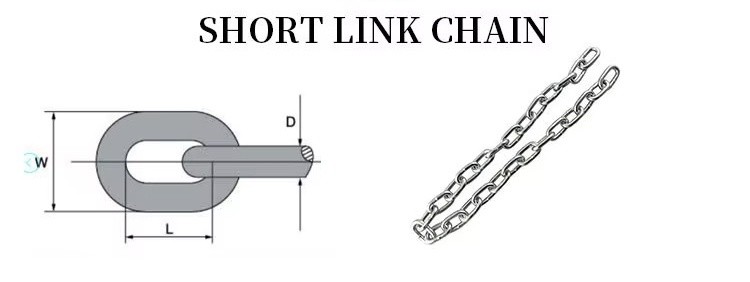

SHORT LINK CHAIN

1 短链



LINK SPECIFICATION

TEST LOAD

BREAKING LOAD

NET WT PER 200FT

D

L

W

kg

kg

kg

in

mm

mm

mm



B.F.

H.D.G

1/8

3.2

16

12

200

400

11.4

11.74

5/32

4

18.5

14.5

300

600

18.6

19

3/16

4.7

19

17

400

800

26.2

27

7/32

5.5

20

19

550

1100

36.8

38

1/4

6.35

22

21

750

1500

50

51.5

5/16

7.94

26.5

27.2

1200

2400

80

82.4

3/8

9.5

30

32

1700

3400

122

125.7

7/16

11.11

34

36

2300

4600

164

169

1/2

12.7

39

43

3000

6000

210

216

5/8

15.8

45

53

4700

9400

334

344

3/4

19

55

63

6800

13600

485

499

7/8

22.2

64

74

9250

18500

656

675

1

25.4

73

84

12150

24300

870

896

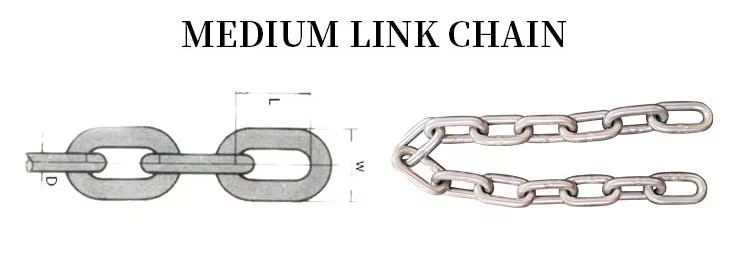

MEDIUM LINK CHAIN


2 中链

LINK SPECIFICATION

TEST LOAD

BREAKING LOAD

NET WT PER 200FT

(kg)

D

L

mm

W

mm

in

mm

kg

kg

B.F.

H.D.G

1/8

3.2

20

12

200

400

10.80

11.00

5/32

4

23

15

300

600

17.40

18.00

3/16

4.7

25

18

400

800

24.40

25.00

7/32

5.5

26

19

550

1100

34.00

35.00

1/4

6,35

26

23

750

1500

48.80

50.00

5/16

7.94

32

29

1200

2400

76.00

78.00

3/8

9.5

35

35

1700

3400

111.00

114.00

7/16

11.11

38

38

2300

4600

154.00

158.00

1/2

12.7

50

45.5

3000

6000

194.00

200.00

5/8

15.8

60

56.7

4700

9400

303.00

312.00

3/4

19

76

69

6800

13600

432.00

445.00

7/8

22.2

90

80

9250

18500

586.00

603.00

1

25.4

105

95

12150

24300

770.00

792.00

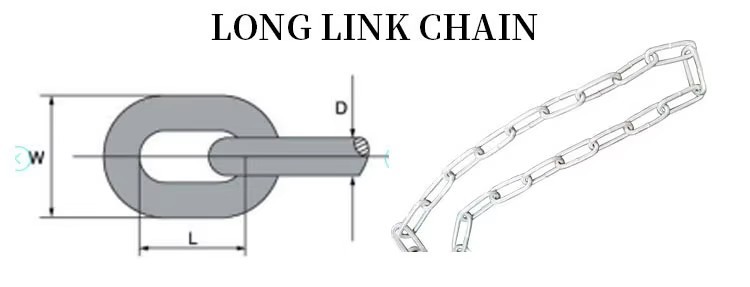

LONG LINK CHAIN



3 长链

LINK SPECIFICATION

TEST

LOAD

BREAKING

LOAD

NET WT PER 200FT

(kg)

D

L

mm

W

mm

in

mm

kg

kg

B.F.

H.D.G

1/8

3.20

23

12

200

400

10.40

10.70

5/32

4.00

27

15

300

600

16.60

17.50

3/16

4.70

31

17

400

800

22.40

23.30

7/32

5.50

32

19

550

1100

32.00

33.00

1/4

6.35

33

21

750

1500

43.50

44.80

5/16

7.94

48

31

1200

2400

68.00

70.00

3/8

9.50

60

37

1700

3400

96.00

99.00

7/16

11.11

71

41

2300

4600

126.00

129.00

1/2

12.70

85

48.5

3000

6000

167.00

172.00

5/8

15.80

114

61.5

4700

9400

256.00

264.00

3/4

19.00

125

75

6800

13600

381.00

392.00

7/8

22.20

140

88

9250

18500

527.00

543.00

1

25.40

155

100

12150

24300

696.00

716.00

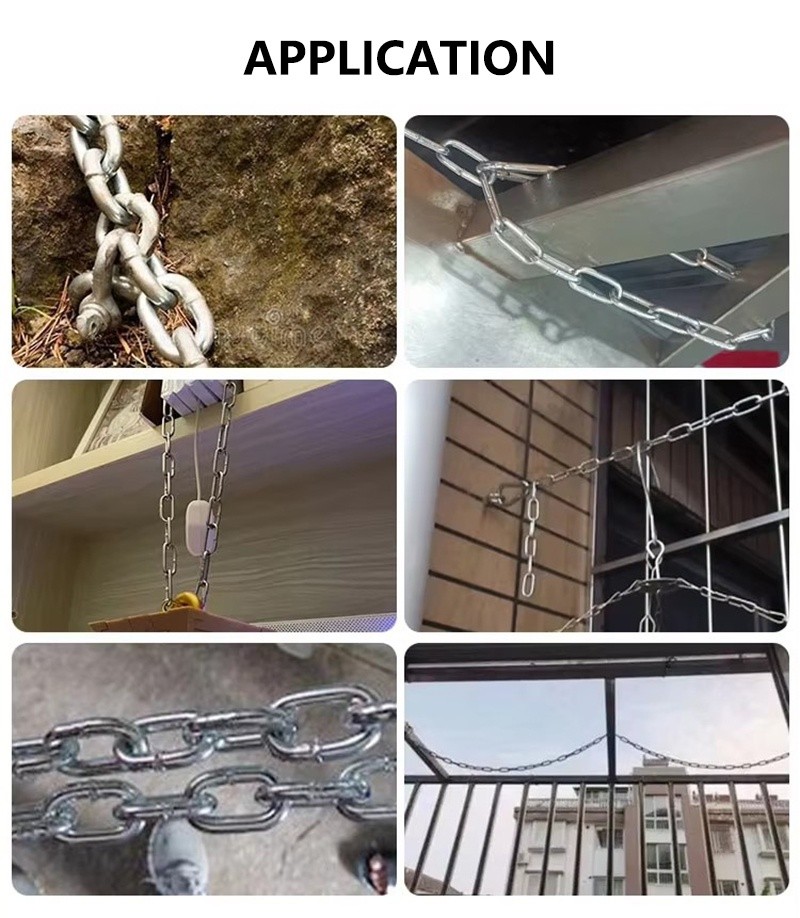

Product Application:

Binding, lifting, hoisting, transportation, dragging

普通长中短链条应用


Company Certification:

Our product meets international production standards and has obtained multiple certifications such as SGS, CE, Rohs ISO, etc

证书



Factory Showcase

  • 580fbdd7ee200b9585df35935f1725e2
  • 0268a5718fdd7888dab82e11a0ac008c
  • 89ada3a13deda734bca9c62b64a3d547
  • 7b92118503291692d9f5dc2651eab27e
  • aeec0da04673e0188bc4688c72e93cc4
  • 02 索具 (1)
  • H61cf6e55229746d48937b1453fa3f6a3D
  • 更换图片背景 (3)
  • 更换图片背景 (6)

Customer Visit

Shandong Faster Technology Co., Ltd. is a professional comprehensive manufacturer of steel wire rope, sling, and chains in China, focusing on providing high reliability industrial supporting products and customized solutions for multiple industries such as lifting, ships, ports, construction, mining, elevators, etc.

The company has advanced automated production lines for wire drawing, twisting and rope closing, and also equipped with quality inspection equipment, to achieve full process control ability from raw materials to finished products, ensuring stable and consistent product quality. At present, it has the production capacity of various types of steel wire ropes with an annual output of over 70000 tons, and can supply single/multi strand steel wire ropes with a diameter of 1-20mm, covering three material series: galvanized, stainless steel, and plastic coated , to meet the corrosion resistance and high-strength requirements of different scenarios.

In addition to standardized steel wire rope products, we can customize and process various types of pressed product slings according to customer needs, and provide full specification chain products such as G30, G43, G70, G80, G100, etc., forming an integrated supply capacity of "rope-sling-chain", providing one-stop solutions for industrial lifting, traction, fixation and other multi scenario needs.

With excellent product quality and flexible customized services, Shandong Faster has become a long-term partner for many industry customers.
